High Voltage Transformers

Powertronix-High-High-Voltage-Transformer-0.jpg Powertronix-High-High-Voltage-Transformer-2.jpg

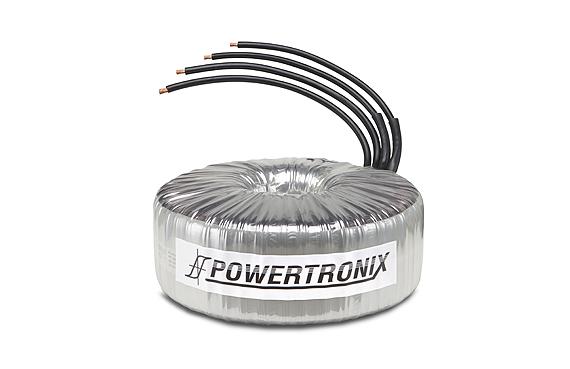

High Voltage Toroidal Transformers are designed light weight, small in size, high efficient and high reliability for rough environmental conditions.  High Voltage Transformers also provide electrical isolation, power distribution and control and instrumentation applications.

APPLICATIONS
  •  Popular for remotely operated equipment.
  •  Electrostatic cleaners, laser equipment, ozone generation equipment, particle accelerators, high voltage power supplies, and x-ray machinery.



  • Features
    • Popular for remotely operated equipments.
    • Light weight
    • Small in size
    • Negligible electrmagnetic interference
    • High efficient
    • Robust
    • Dependable
    • Class B (130deg C)
    • Class F (155deg C)
    • Class H (180deg C)
  • Safety
    • UL 506, UL 508C
    • CE Marked & RoHS Compliant
  • Mounting
    •  Flange Mount
    •  Custom

  • Specification
    • 1 Phase Power: 1.0kVA t15kVA
    • 3 Phase Power: 3.0kVA t45kVA
    • Frequency: 47 Hz – 63 Hz
    • Regulation: < 3%
    • Primary Voltage: max 4000Vac
    • Secondary voltage: max 4000Vac
    • Efficiency: 90-98 %
