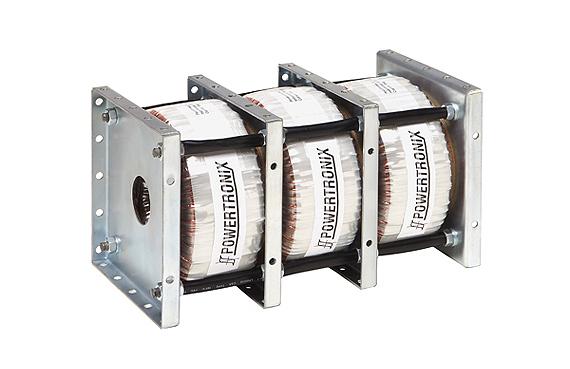

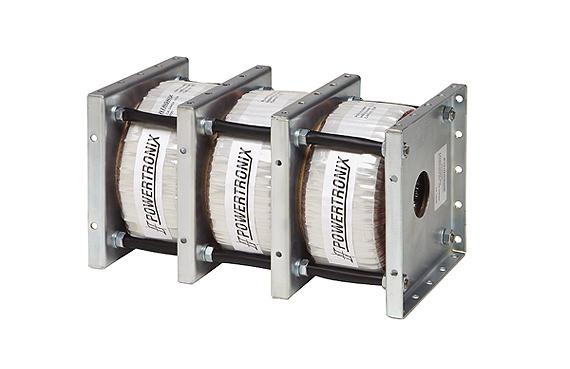

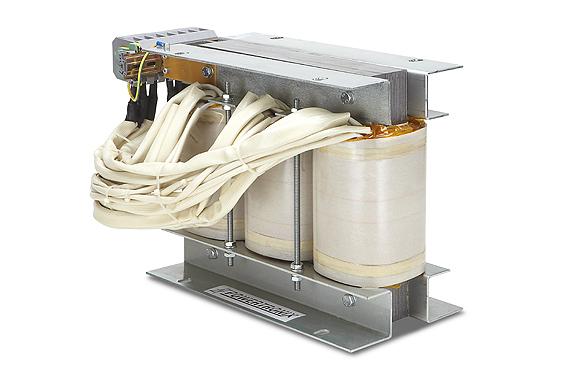

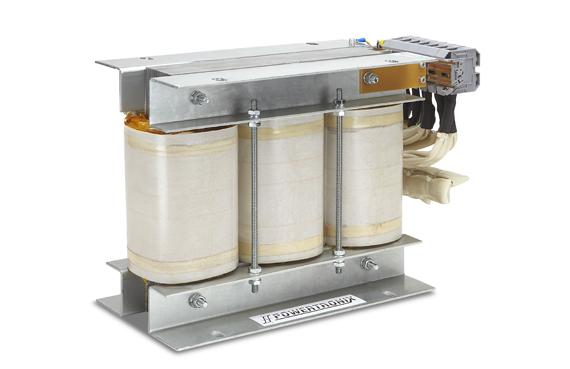

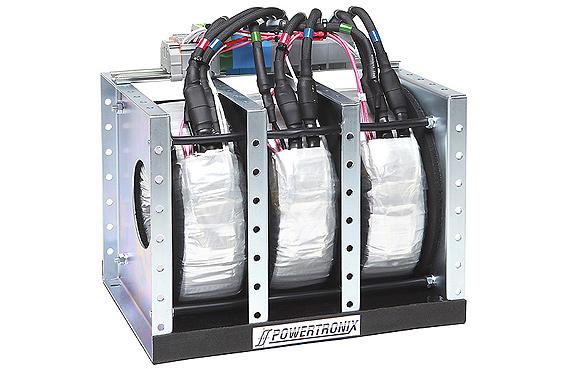

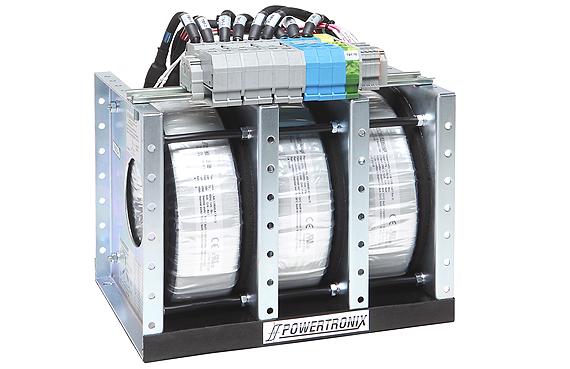

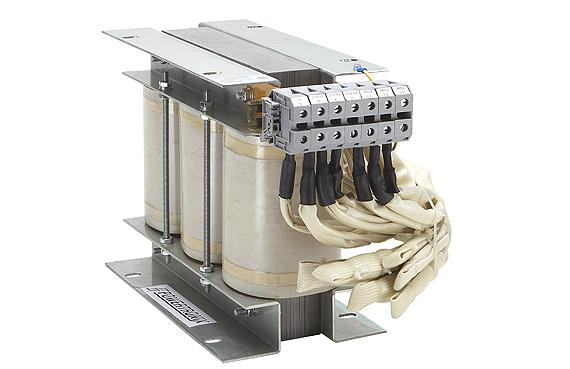

3-PHASE AUTO TRANSFORMERS
3-Phase Auto Transformers offer a significant size and weight reduction as well as lower cost. Auto Transformers are for voltage step up or step down when there is no requirement for electrical isolation.
APPLICATIONS
- Automation
- Marine
-
Features
- Class A (105deg C)
- Class B (130deg C)
- Class F (155deg C)
- Class H (180deg C)
-
Safety
- UL 506, UL 508C
- UL 60065
- UL 60950
- CE Marked & RoHS Compliant
-
Mounting
- Flange Mount
- Potted in a cradle
-
Specification
- Power: 2kVA - 120kVA
- Standard Voltage: up t600V
- Frequency: 47Hz – 63 Hz
- Primary: Customer defined
- Secondary: Customer defined
- Isolation: 4000Vrms
- Voltage tolerance: +/-3%
- Efficiency: 95% - 99%

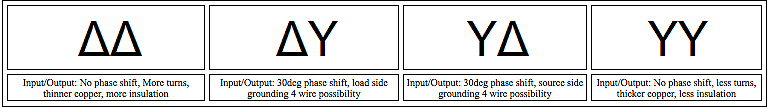

- Connections: ΔY YΔ YY ΔΔ
- Temperature class: customer defined

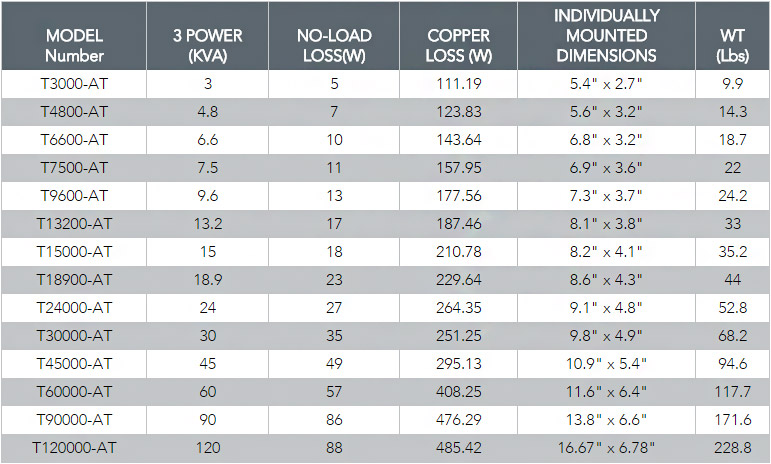

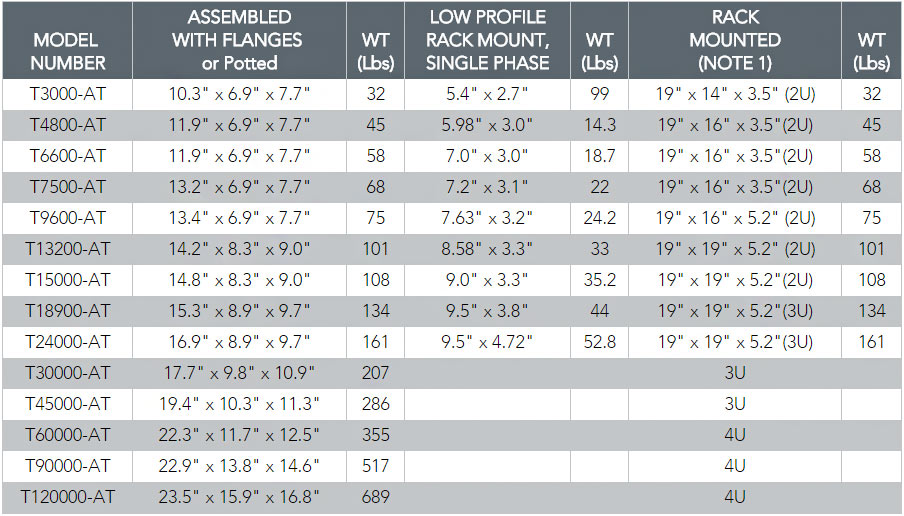

Single Transformer Dimensions
Three Phase Unit Transformer Dimensions
