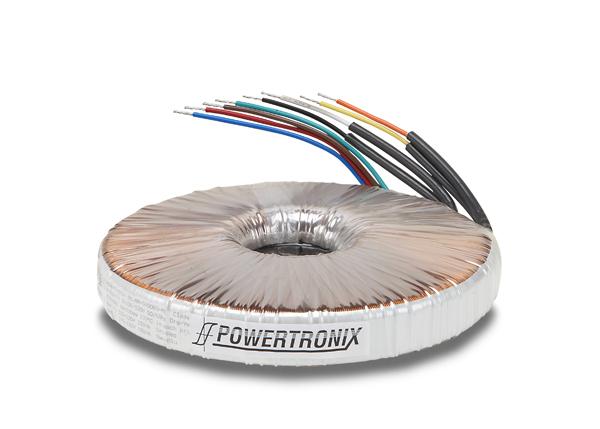

Medical Grade Transformers

Powertronix-Medical-Grade-Transformer-0.jpg Powertronix-Medical-Grade-Transformer-1.jpg Powertronix-Medical-Grade-Transformer-2.jpg Powertronix-Medical-Grade-Transformer-4.jpg Powertronix-Medical-Grade-Transformer-5.jpg Powertronix-Medical-Grade-Transformer-6.jpg
  •  Medical Grade Transformer provides
  •  Clean AC power with noise suppression
  •  Protection from AC transients.
  •  Optimize power solution for medical equipment

 APPLICATIONS
  • Medical Grade Transformer provide 1:1, step up or step down for medical equipment, carts, imaging, and laser.


  • Features
    • Power: 100VA-15,000 VA
    • Frequency: 47-63 Hz
    • Isolation: 5,000 Volt RMS
    • Leakage Current: Less than 100 µAmp leakage current
    • Built in thermal protection for overload and short circuit conditions.
    • Double-reinforced insulation withstand 5,000 Volt Hi-Pot test
    • Efficiency: 90%-98%
    • Low magnetic stray field
    • Low Mechanical Noise
    • High Efficiency
    • Cool operating Temperature
  • Safety
    • UL 60601-1 3rd Edition
    • UL 506, UL 508C
    • UL 60065
    • UL 60950
    • IEC 60601-1
    • CB Cert
    • CE Marked & RoHS Compliant
  • Mounting

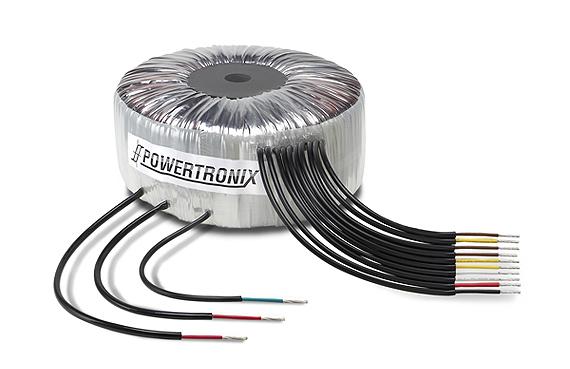

    •  Flange Mounted

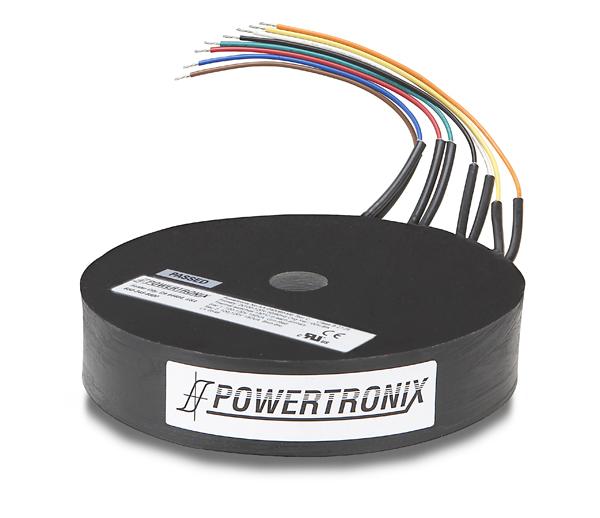

    •  Potted in a cradle

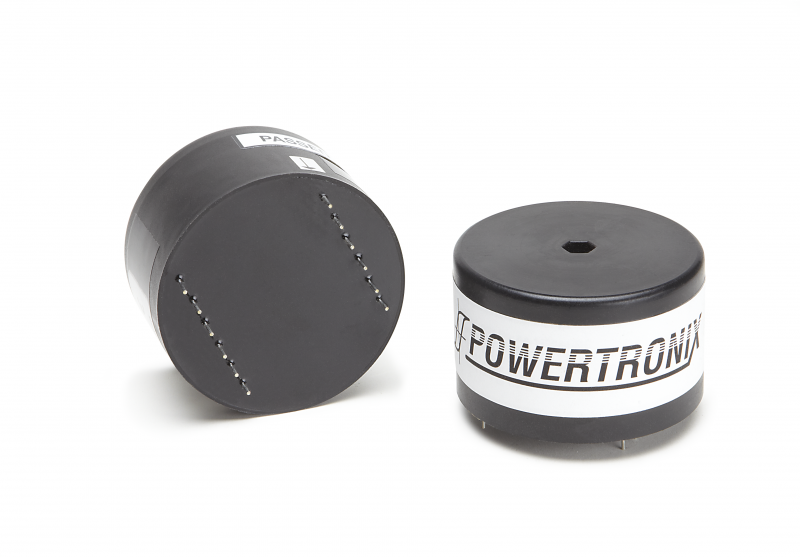

    •  Center potted with thru hole

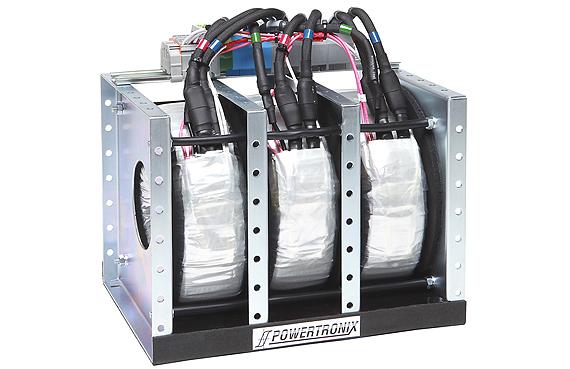

    •  Rack Mounted (1U, 2U, 3U)
    •  Panel Mounted

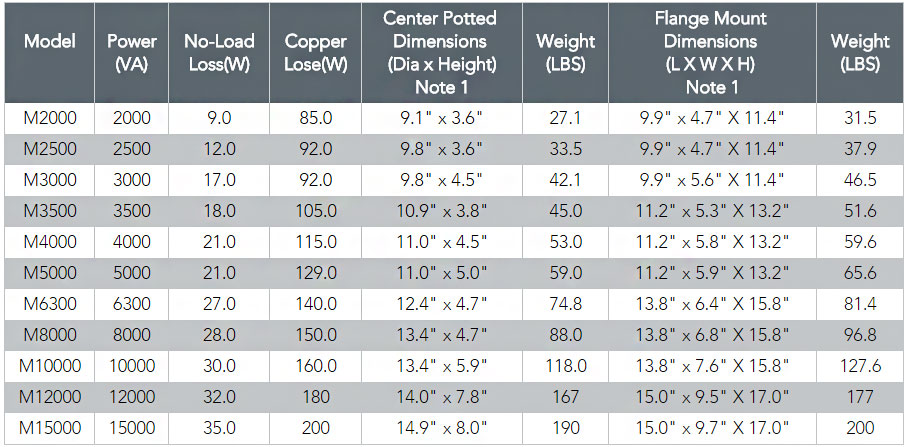

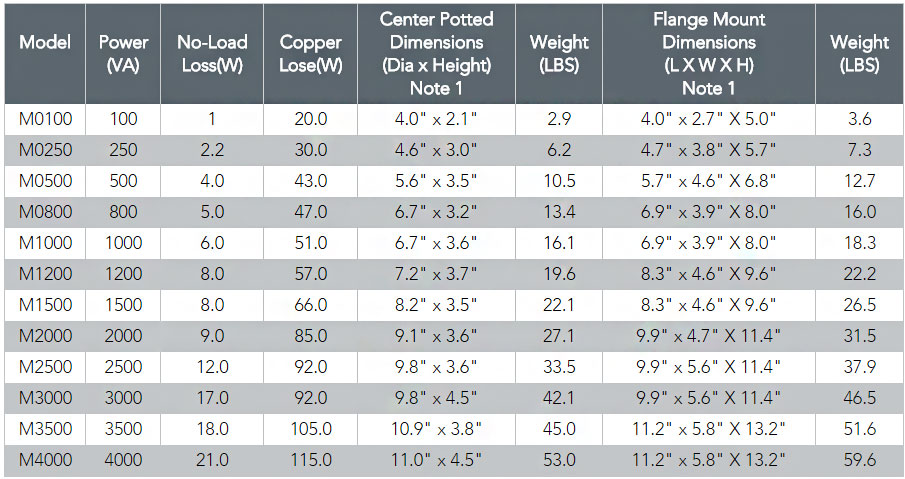

  • Specification

    PowerTronix-Medical-Grade-Transformer

    PowerTronix-Medical-Grade-Transformer
