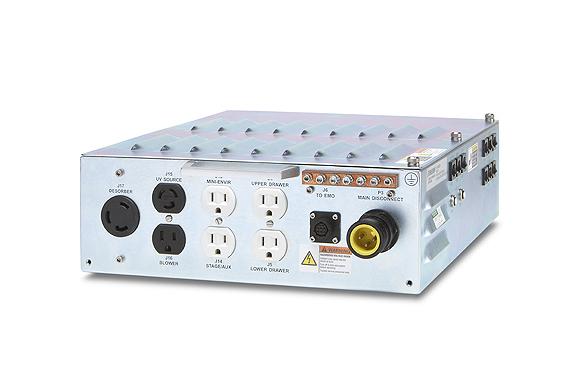

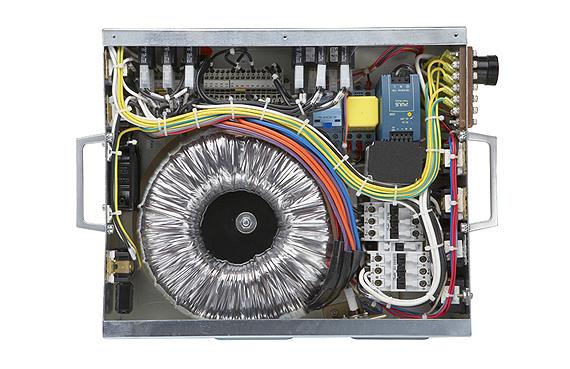

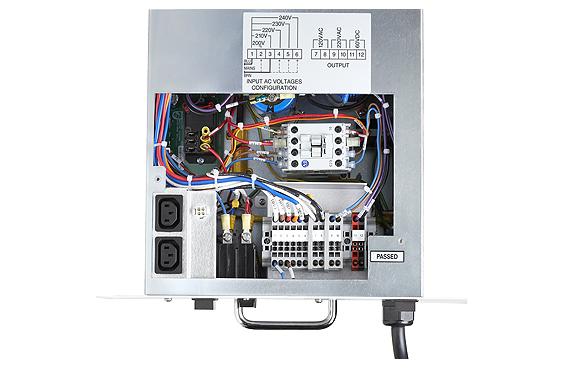

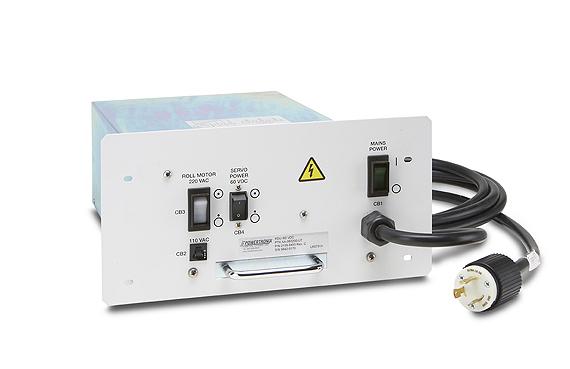

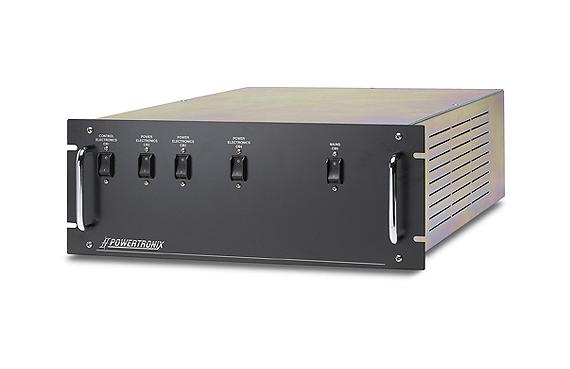

Power Distribution Units (PDU)
PDUs offer the isolation features of our transformer, the voltage regulation and noise suppression features of our PLC and the AC power distribution capabilities.
Application
- Medical imaging systems
- Medical lasers
- Semiconductor manufacturing
- Automatic test equipment
- Robotics
- Computer systems
-
Features
- Low Inrush Current PDU
- Intelligent soft-start with sequential load distribution
- Voltage-selectable input that ranges from 100 Volt to 240 Volt (Worldwide input voltage)
- Ultra low output impedance (<0.5ohm.)
- Emergency circuit breakers (EMO)
- Single phase , Three phase, AC-AC , AC-DC or Combination.
-
Safety
- UL 60601-1 3rd Edition
- UL 506, UL 508C
- UL 60065
- UL 60950
- IEC 60601-1
- CE Marked & RoHS Compliant
-
Mounting
- Floor Mounting
- Rack Mount
- Customize mounting according to specific requirement.
- Contact Powertronix for additional mounting requirement
-
Specification
- Input Voltage: 100 / 110 / 115 / 120 / 200 / 208 / 220 / 230 / 240 VAC
- Frequency: 47 Hz – 63 Hz
- Isolation: 4,000 VRMS
- Output Voltage: 120/240 V
- Power Range: 500 VA – 8000 VA
- Ambient Temp: 0 °– 40°C
- Efficiency: 95 - 97%
