*NEW* FLEX SERIES

012-w-shadow.jpg 003-013a-grad-w-shadow.jpg 004.jpg Medical-cart-Power-Supply.jpg 1200-Watt-Medical-Power-Supply.jpg Medical-Isolation-Transformer.jpg Remote-Power-Supply-Medical.jpg World-Smallest-Power-Supply.jpg Clean-Power.jpg

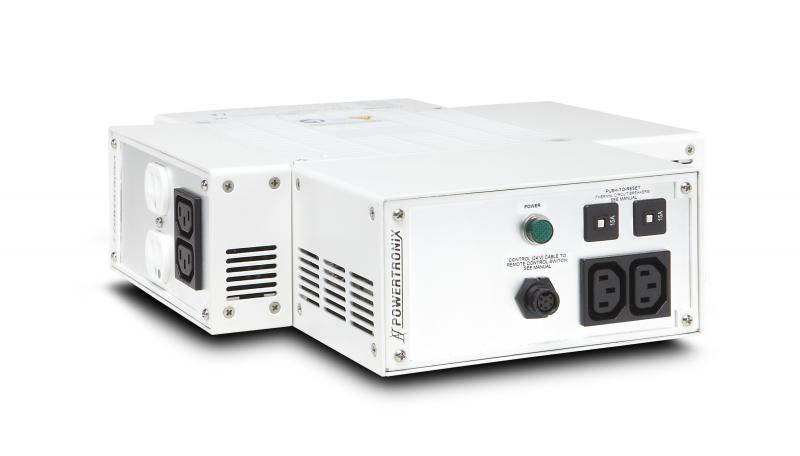

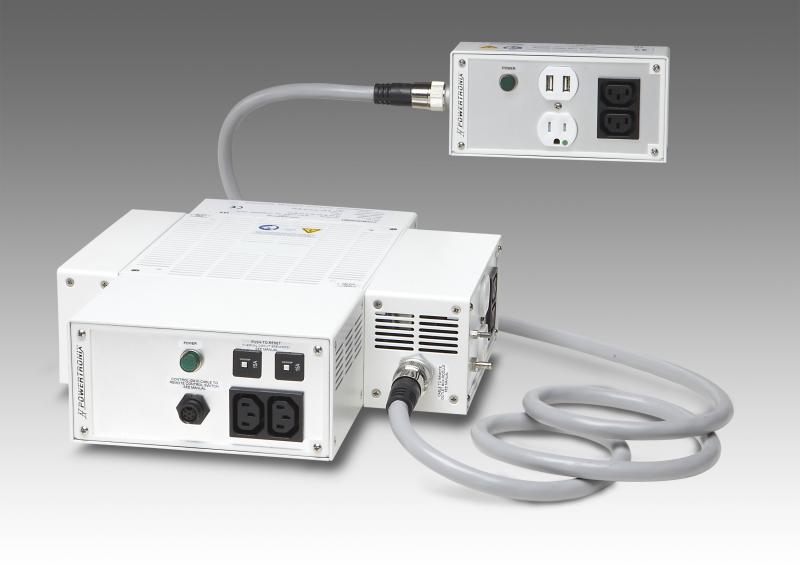

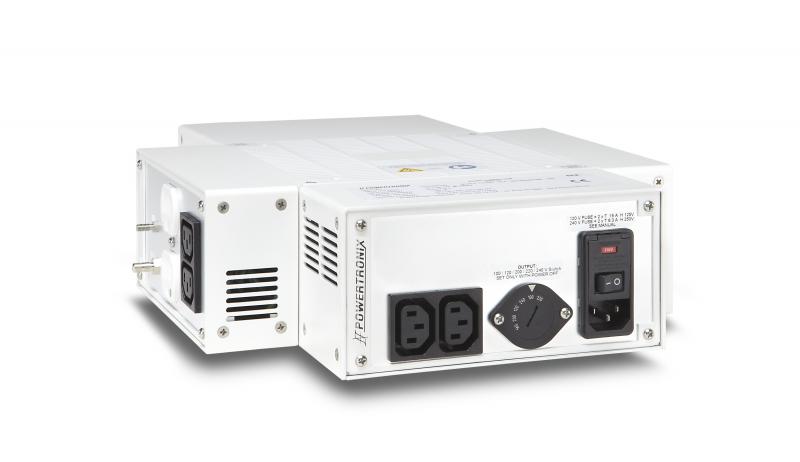

Powertronix Isolation Station FLEX Series is used in medical devices to provide medical isolation from the main electricity supply, limiting  the leakage current and provide patient and operator protection. ZERO Failure. Isolation Station FLEX Series is modular and smart design to configure for end application.

Application
  • Medical carts, medical laser, imaging
  • Diagnostic lab equipment
  • Mobile Medical Cart, Clinical Diagnostic
  • IT Management & Network Servers,
  • Retail / Data processing equipment.
  • Industrial / Commercial Equipment
  • Automation/Robotic





  • FEATURES
    • Power: 300 VA – 1,200 VA
    • Modular design – Flexibility and Rapid turn around
    • Most compact unit out in the market

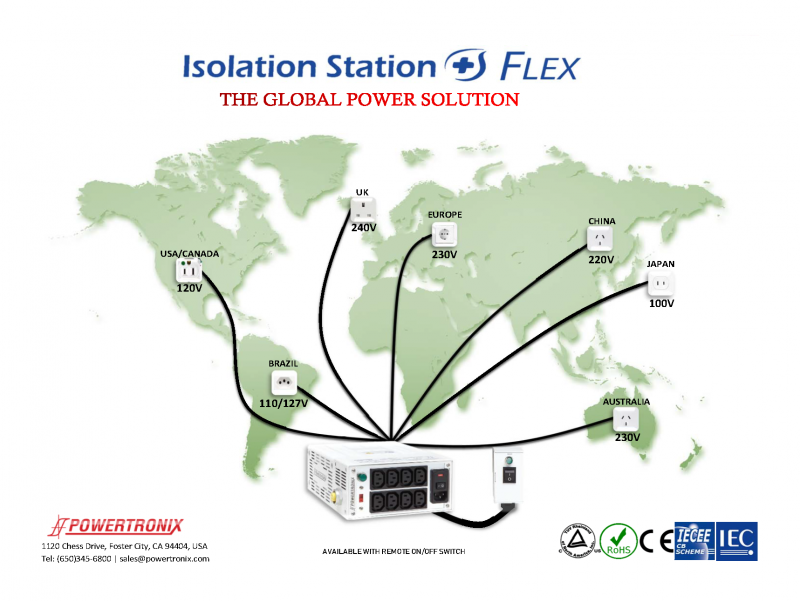

    • Voltage selectable: Worldwide 100V/120V/127V/200V/220V/230V/240V
    • Configurable Outlets: IEC, NEMA: Worldwide – SCHUKO, Japan, USB

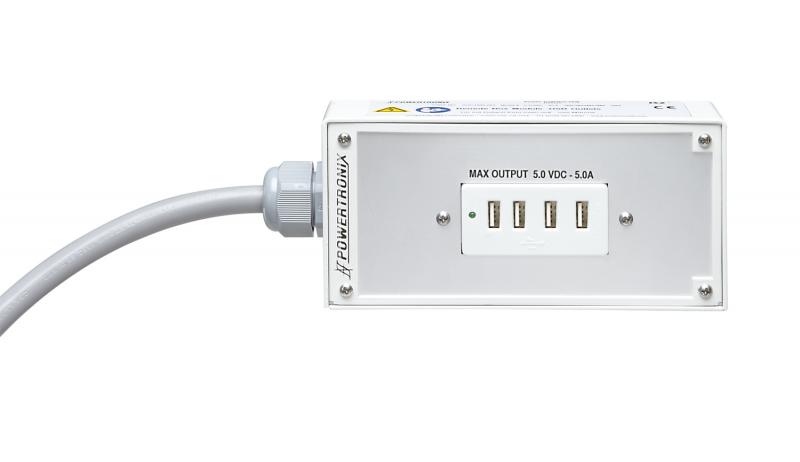

    • Distributed OUTLETS, USB, ON/OFF SWITCH
    • COMPONENTS on any side of the enclosure

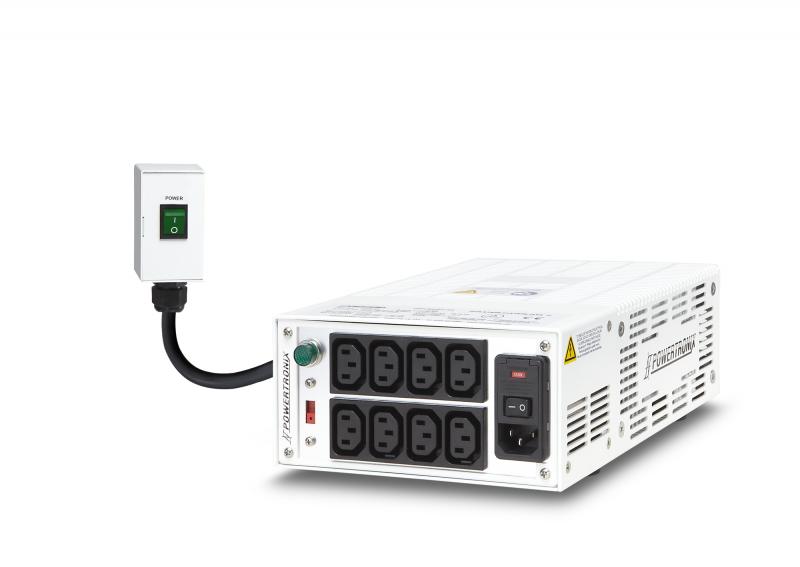

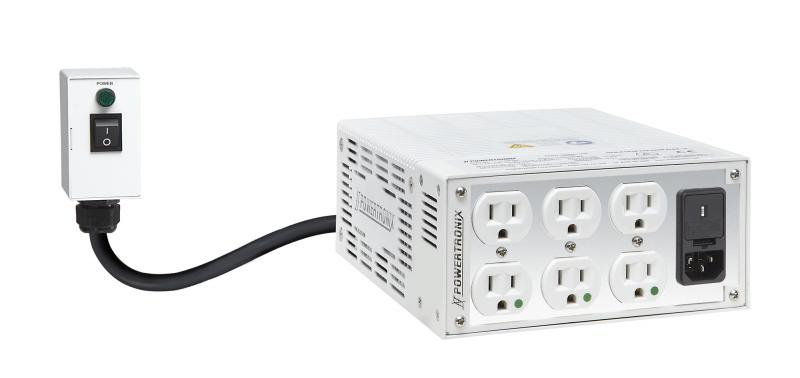

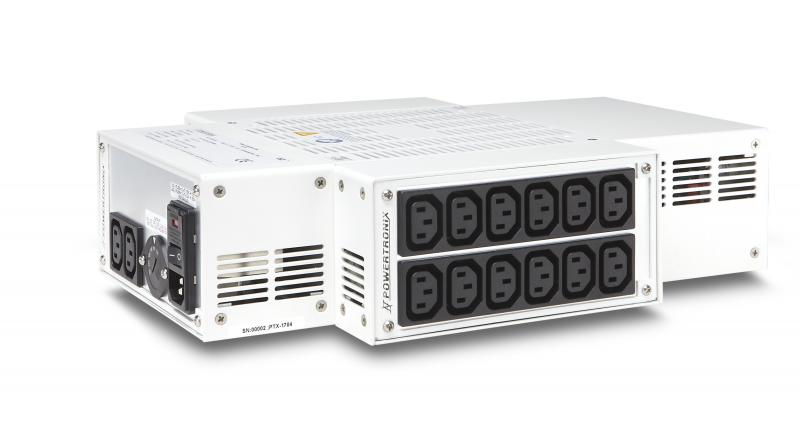

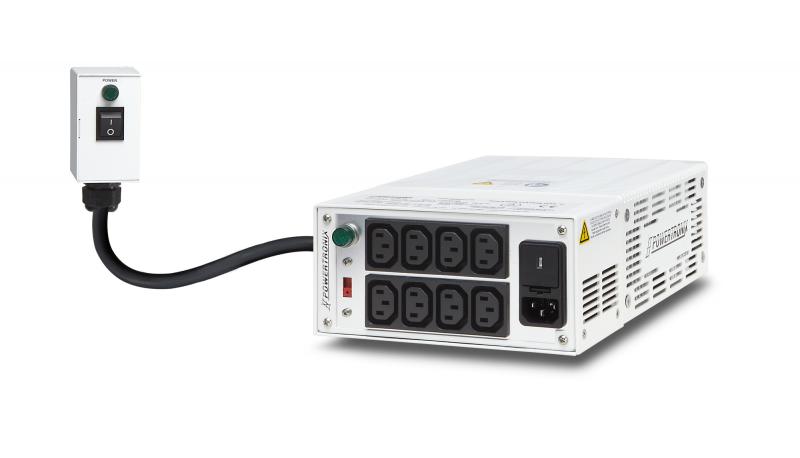

    • Most number of outlets – 12 IEC C13 or 8 NEMA 5-15R/20R on one side
    • Safety Approval: Listed to TUV, 60601-1, CB Certificate, CE and RoHS/REACH
    • Dependable: High Quality and reliable
  • SAFETY
    • CB Certified to IEC 60601-1:2005 and IEC 60601-1-6:2010
    •  cTUVus tested to ANSI/AAMI ES60601-1:2005+A2 (R2012)
    • CAN/CSA-C22.2 No. 60601-1-6:11 + A1
    • IEC 60950(ed.2), IEC 60950-1(ed.2); am1, IEC 60950-1(ed.2)
    • CB certified to IEC/EN 60950-1: 2005
    • RoHS Compliant
    • CE Marked
  • MOUNTING
    • Floor Mounting
    • Cart Mount
    • Customizable Mounting
  • INFO
    • Designed and Manufacture in USA
    • 2U Height
    • Medical Safety Standard
    • Low Leakage Current
  • SPECIFICATION
    Model No Power (VA) Inlet Type No of Outlets Outlet Type Dimensions (L" x W" x H") Weight (LBS)
    CJ2A1NA-3BA 1,000 C14 6 NEMA 7.20 X 10.20 X 3.48 22
    CL1M1MA-2BA 1,200 C14 6 NEMA 7.20 X 10.20 X 3.48 22
    CJ2A2AA-3BB 1,000 C14 8 C13 7.20 X 10.20 X 3.48 22
    CJ4A2EA-3BC 1,000 C14 8 C13 7.20 X 10.20 X 3.48 22
    CJ4A2EA-4BA 1,000 C14 8 C13 7.20 X 11.64 X 3.48 22
